The guide below will help you in setting up the connection and wiring diagram of your GDS3705 or GDS3710.
You may check out the different types of wiring diagrams below.

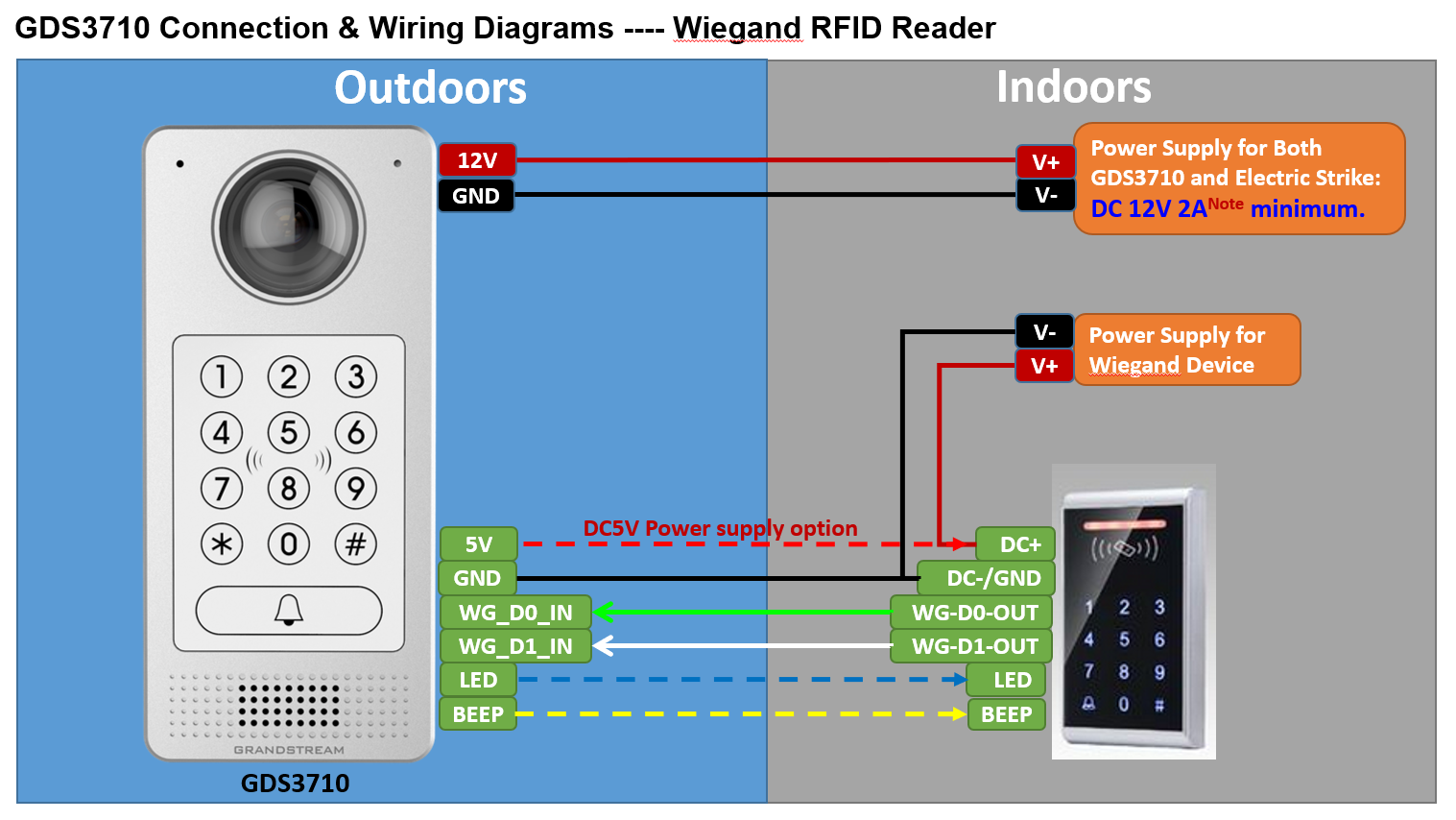

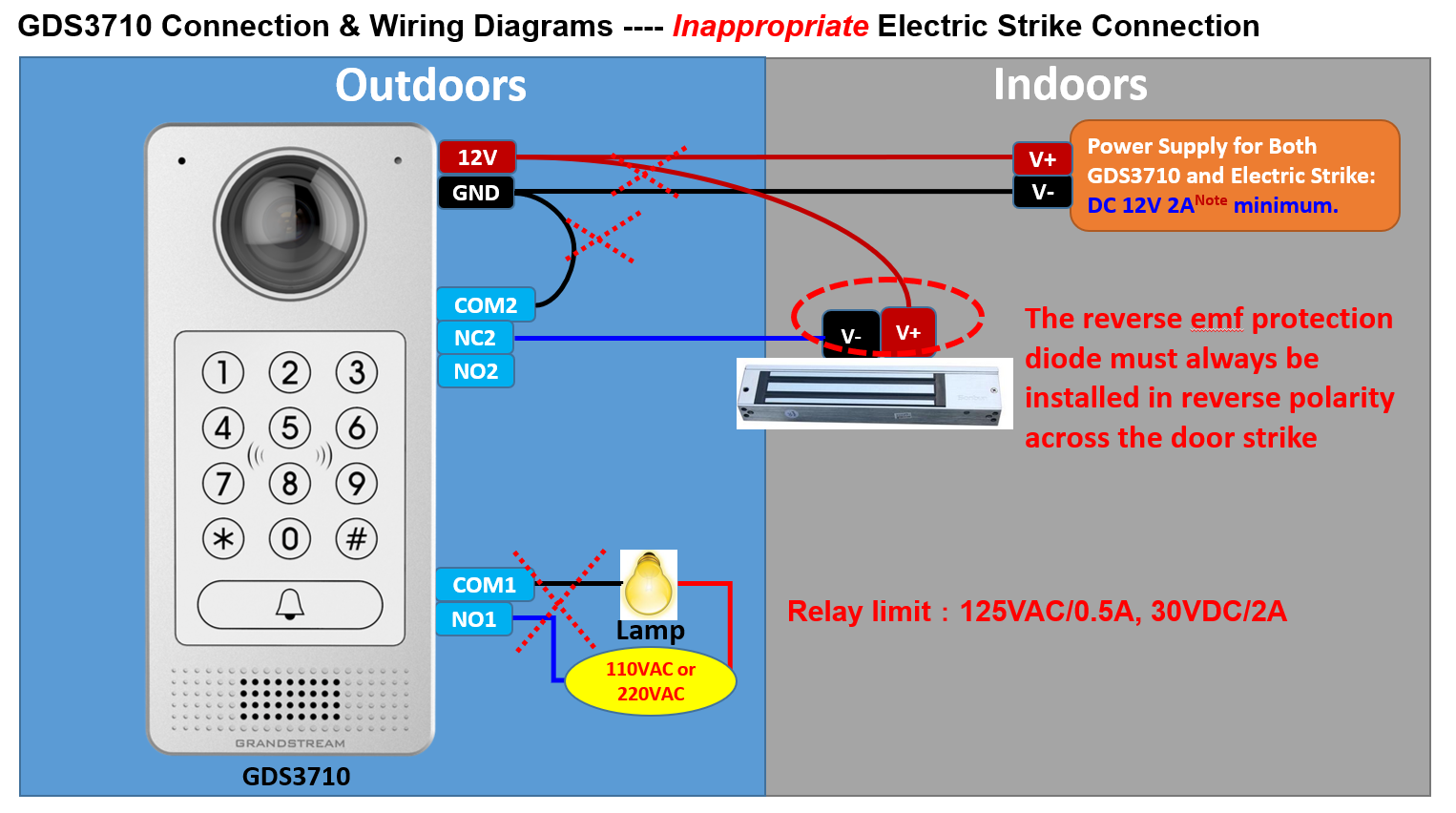

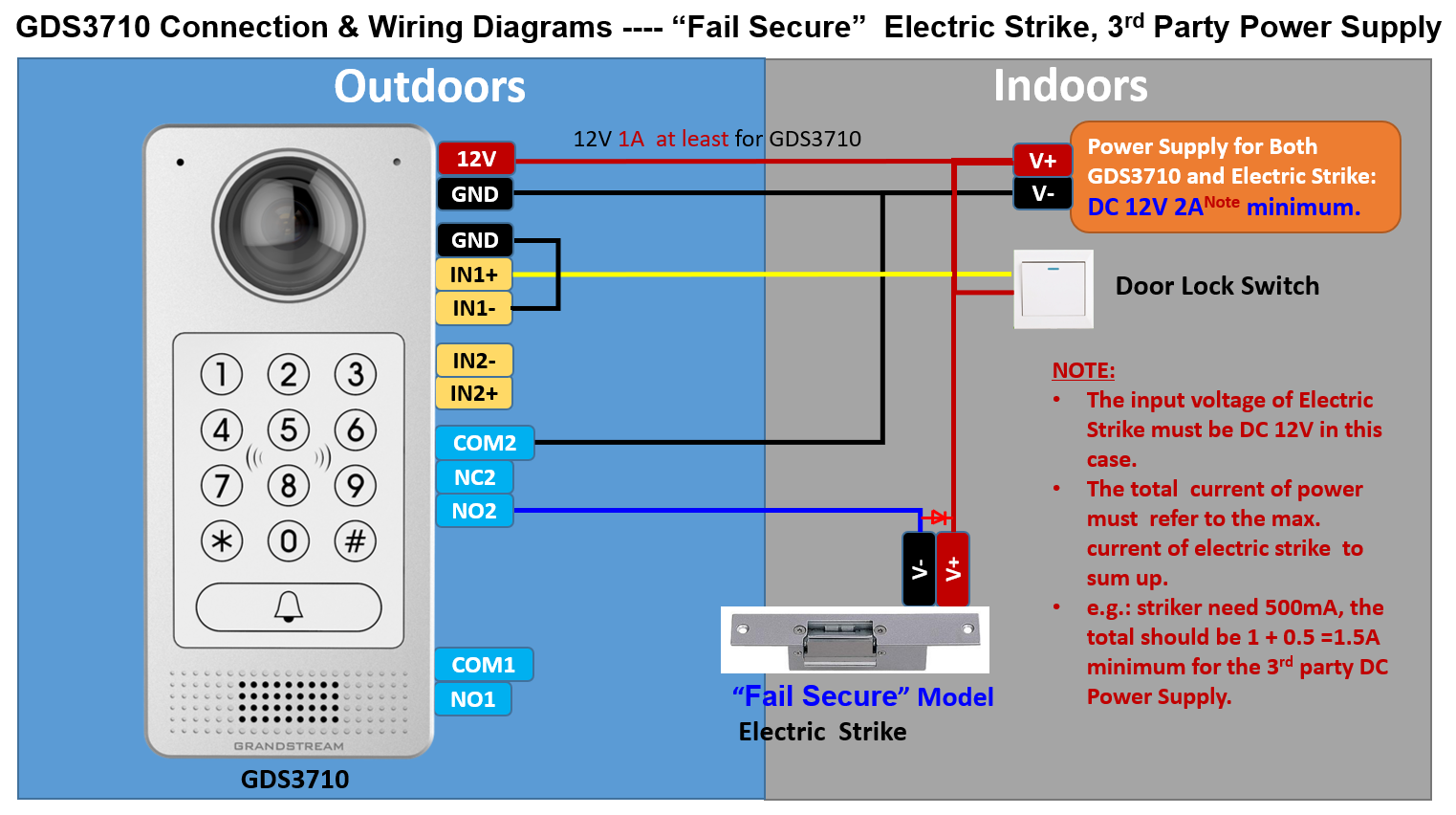

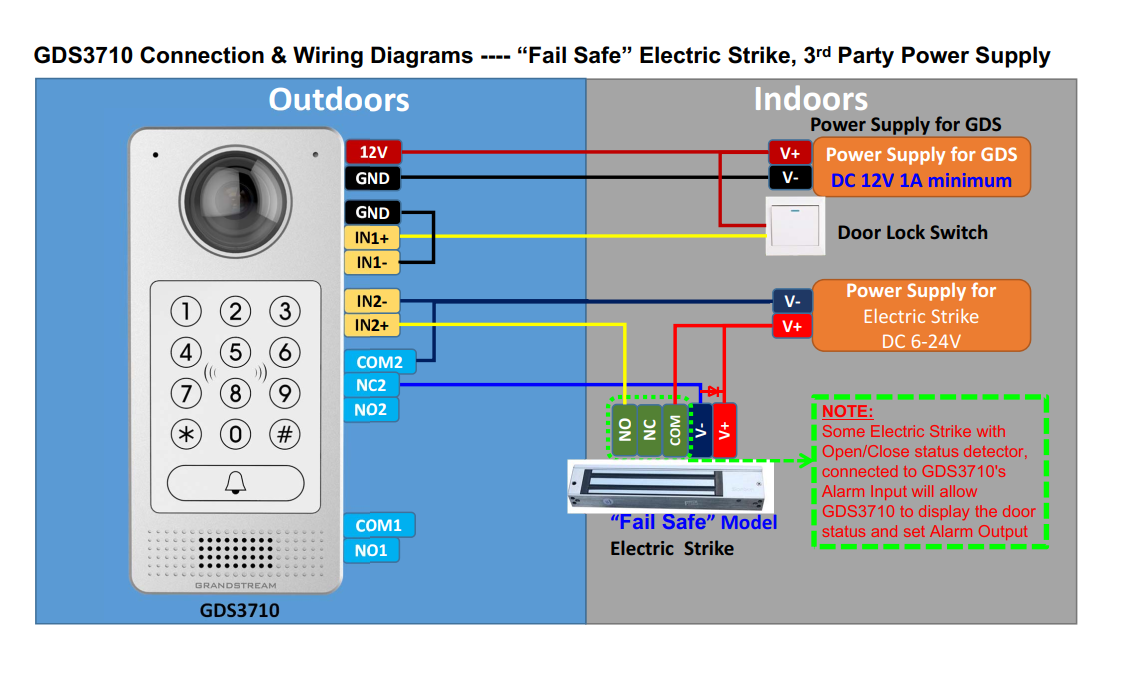

GDS37xx connection and wiring diagram Print
Created by: Christopher Magbanua
Modified on: Fri, 30 Sep, 2022 at 3:49 PM
